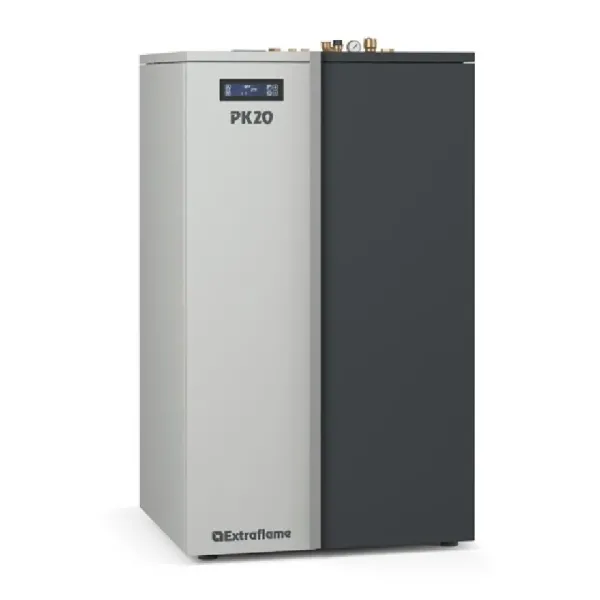

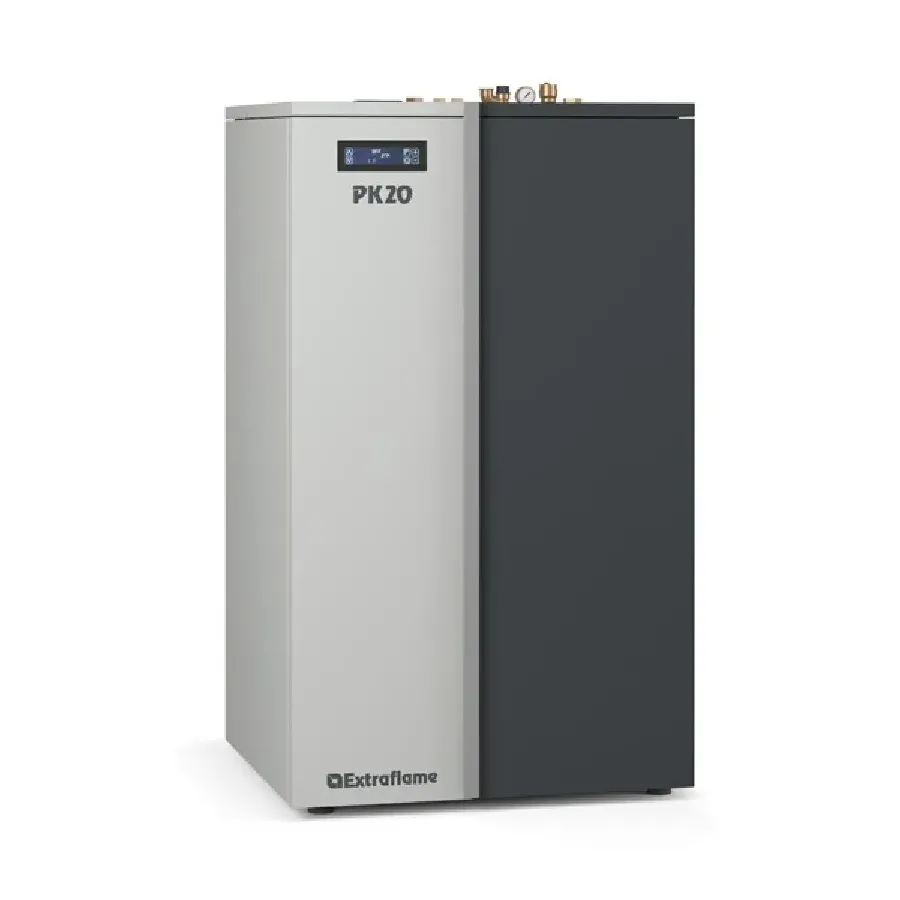

Extraflame PK20 output 20.0 kW steel grey pellet boiler 1202800

Extraflame PK20 output 20.0 kW steel grey pellet boiler 1202800

Product type: Pellet boiler
Manufacturer name: Extraflame
Oven typology: 0
Series: PK20
Color: Gray
Coating type: steel
Rated power: 20.0 kW
Product code: 1202800

Characteristics:
- Combustion chamber made of thick steel
- Cast iron fire holder and brazier
- Tube bundle heat exchanger with automatic cleaning
- Removable ash drawer
- Tank loading at the front
- Self-cleaning fire bowl with brushless motor
- Ceramic glow plug for fast ignition
- Circulator with PWM control
- Brushless geared motor for loading pellets
- Pellet level sensor
- Probe in the combustion chamber
- Thermal and water pressure safety devices
- 3 bar safety valve
- Expansion vessel
- Ventilation
- Option for smoke extraction: rear, left side
- Hydraulic connections at the top
- Wheels for easy handling
- Innovative adaptive system for regulating and maintaining a constant combustion air supply over time
- Black mask display with integrated Wi-Fi (Total Control 2.0 app)

Product features

Tank safety thermostat
It ensures a consistently high safety standard by preventing the product from overheating in the event of an anomaly.
1. and 2. self-balancing air
Electronically balanced primary and secondary air for optimal combustion and thermal efficiency.
Input for external room thermostat
The product is connected to the house's temperature control devices (thermostats or contacts) to achieve the desired temperature in the rooms.
Safety pressure switches for chimneys??
Check that the smoke extraction is working correctly and stop loading with pellets if necessary to avoid problems with the generator.
Chronothermostat
Chronothermostat with temperature control divided into four day zones for optimal room control.
Automatic restart after a power outage
After a power outage, the device automatically switches back on after the required test cycle has been performed.
room thermostat
The presence of the space probe optimizes comfort and leads to a significant reduction in consumption.
Clean combustion
It increases combustion efficiency and the service life of wear parts while reducing routine cleaning of the combustion chamber.
Self-regulation of the smoke extraction system (encoder)
It keeps the speed of the flue gas engine constant to ensure proper combustion of the product.

The data reported on this website was extrapolated from the official websites of Extraflame and La Nordica; changes may be made by the parent company without prior notice. We invite you to view the updated technical specifications on the official website.

Download product sheet
