Hisense Duo Split duct installation devices 18000+18000 Btu 4AMW81U4RJC ADT52UX4RCL8 ADT52UX4RCL8 air conditioning duct R-32 WiF

Hisense Duo Split duct installation devices 18000+18000 Btu 4AMW81U4RJC ADT52UX4RCL8 ADT52UX4RCL8 air conditioning duct R-32 WiFi Opz

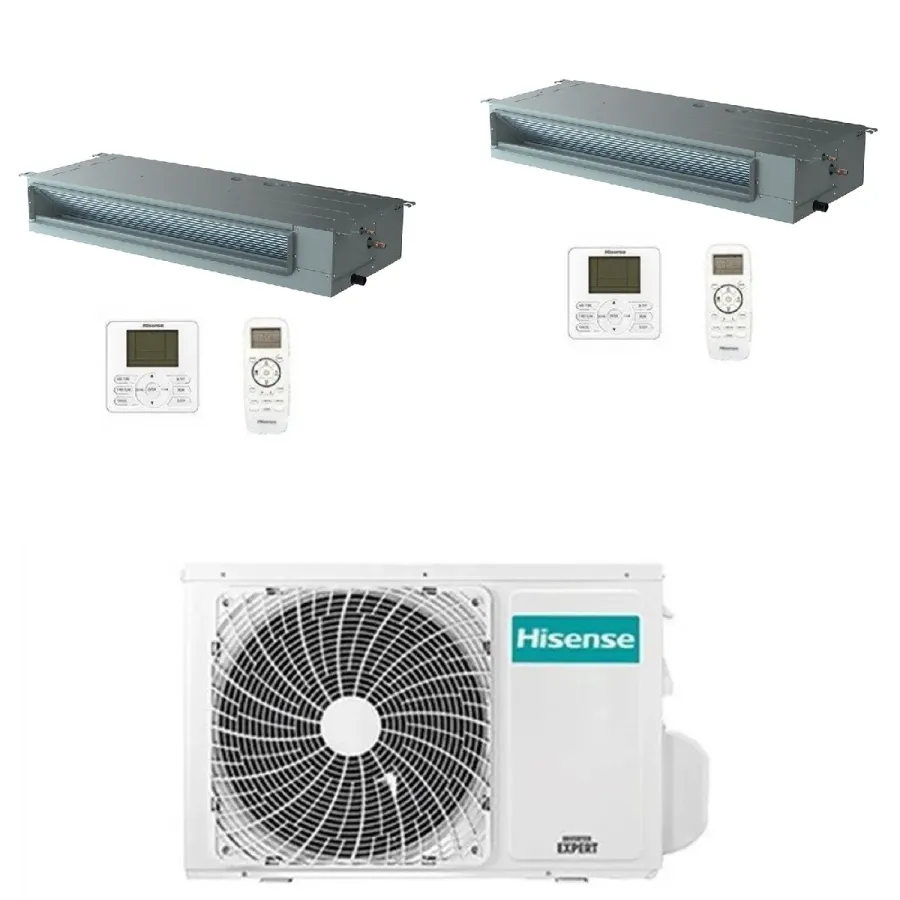

Hisense Duo Split Series Air Conditioner, Channel WiFi Optional, 18000+18000 Btu, Heating with High-Efficiency Heat Pump with Low Energy Consumption, Dehumidifier, Infrared Remote Control and Wired Control Included

Kit compost based on the following elements:
AKT26UR4RK8 9,000 BTU 2.6 kW Console Series Floor
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Width: 700 mm; Height: 630 mm; Depth: 220 mm.
Standard accessories: Infrared remote control.
AKT26UR4RK8 9,000 BTU 2.6 kW Console Series Floor
Ideal for environments of 22 to 27 square meters with an average height of approximately 2.7 meters.
Width: 700 mm; Height: 630 mm; Depth: 220 mm.
Standard accessories: Infrared remote control.
4AMW81U4RJC 28,000 BTU 8.1 kW
Operation with refrigerant gas: R-32
Width: 860 mm, Height: 670 mm, Depth: 310 mm.

Dual series

FLOATING
The presence of the float switch ensures that the water level always remains below the safety level, even if the pump is defective or the drain is blocked. The float switch prevents any water from leaking out. The condensate drain tray is large enough to hold all the water contained in the drain pipe.
VARIABLE STATIC PRESSURE
- With all channel models, it is possible to adjust the static pressure to ensure greater flexibility during installation.
INSTALLATION FLEXIBILITY
The ducted models offer two installation and air intake methods: rear or bottom. If the distance between the unit and the wall is limited, you can choose the bottom air intake by removing the unit's bottom panel. The noise level generated by a bottom air intake can increase by up to 5 dB compared to using a rear air intake. We therefore recommend opting for the latter solution.
FILTER
- All ducted vacuum cleaners are equipped with a nylon filter. The filter is washable, so dust can be easily removed.

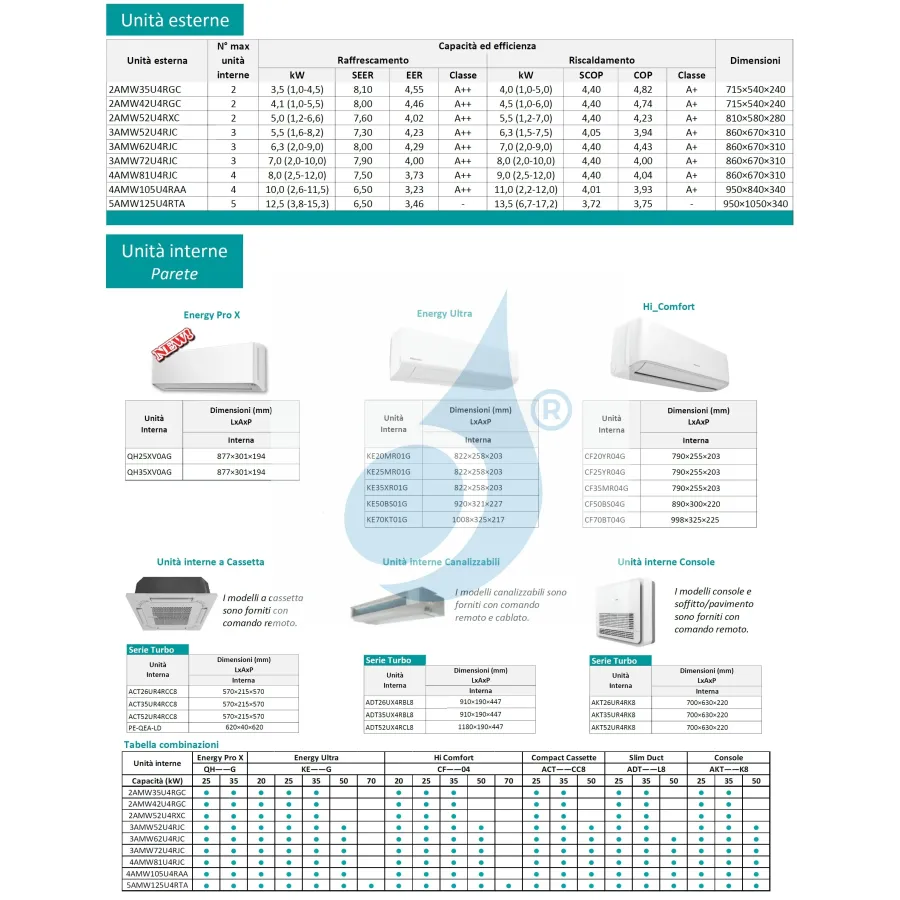

Schede Tecniche

Download Technical Data Sheet Multi Split (2024)
