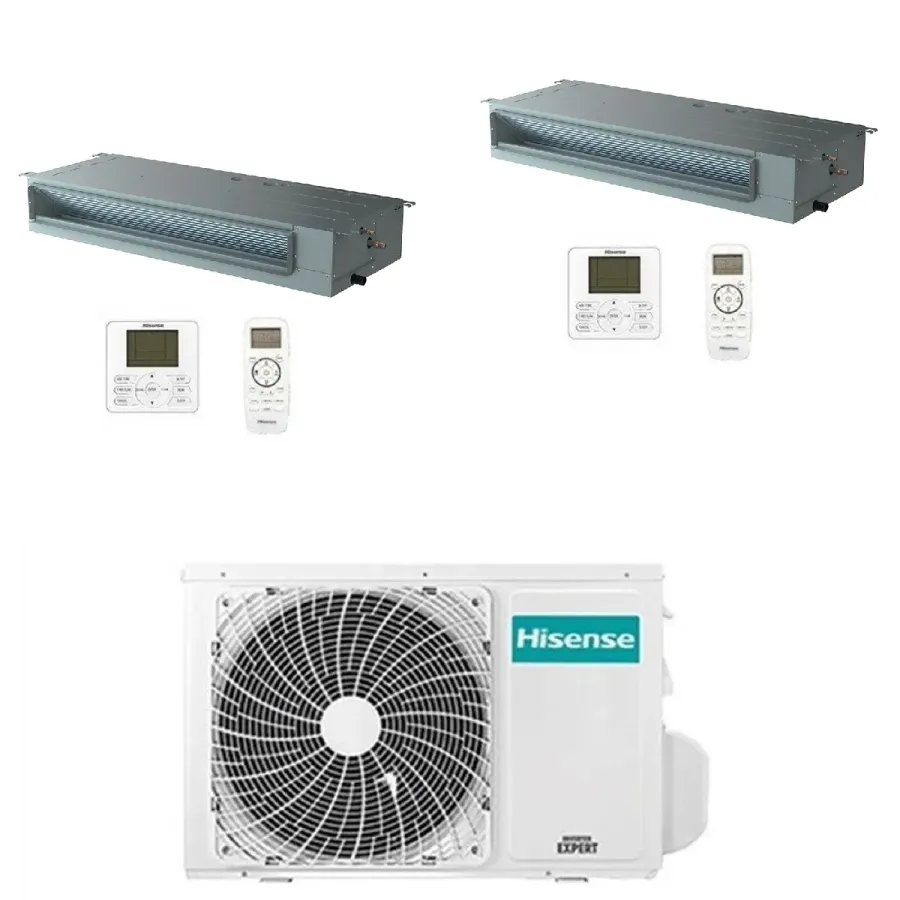

Hisense Duo Split duct installation devices 9000+9000 Btu 2AMW35U4RGC ADT26UX4RBL8 ADT26UX4RBL8 air conditioning duct R-32 WiFi

Hisense Duo Split duct installation devices 9000+9000 Btu 2AMW35U4RGC ADT26UX4RBL8 ADT26UX4RBL8 air conditioning duct R-32 WiFi Opz

Hisense Duo Split Series Air Conditioner, Channel WiFi Optional, 9000+9000 Btu, Heating with High-Efficiency Heat Pump with Low Energy Consumption, Dehumidifier, Infrared Remote Control and Wired Control Included

Kit compost based on the following elements:

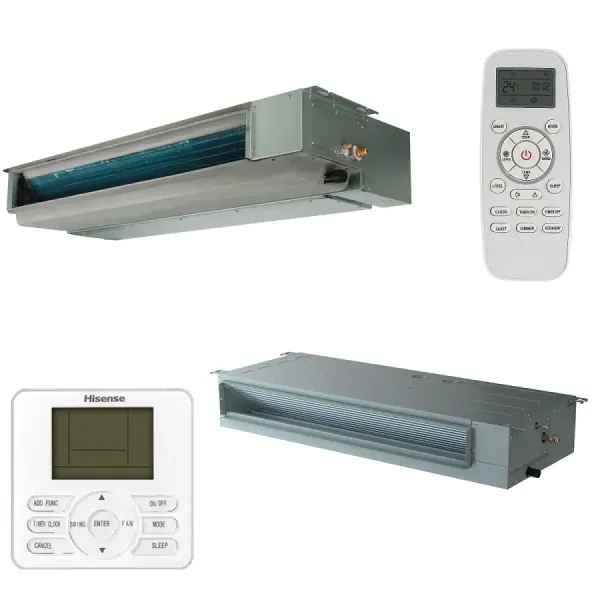

ADT35UX4RBL8 12,000 BTU 3.5 kW Ducted series with low delivery head
Ideal for environments of 27 to 35 square meters with an average height of approximately 2.7 meters.
Width: 910 mm; Height: 190 mm; Depth: 447 mm.
Standard accessories: Infrared remote control and cable control.
ADT35UX4RBL8 12,000 BTU 3.5 kW Ducted series with low delivery head
Ideal for environments of 27 to 35 square meters with an average height of approximately 2.7 meters.
Width: 910 mm; Height: 190 mm; Depth: 447 mm.
Standard accessories: Infrared remote control and cable control.
2AMW35U4RGC 12,000 BTU 3.5 kW
Operation with refrigerant gas: R-32
Width: 715 mm, Height: 540 mm, Depth: 240 mm.

Dual series

FLOATING
The presence of the float switch ensures that the water level always remains below the safety level, even if the pump is defective or the drain is blocked. The float switch prevents any water from leaking out. The condensate drain tray is large enough to hold all the water contained in the drain pipe.
VARIABLE STATIC PRESSURE
- With all channel models, it is possible to adjust the static pressure to ensure greater flexibility during installation.
INSTALLATION FLEXIBILITY
The ducted models offer two installation and air intake methods: rear or bottom. If the distance between the unit and the wall is limited, you can choose the bottom air intake by removing the unit's bottom panel. The noise level generated by a bottom air intake can increase by up to 5 dB compared to using a rear air intake. We therefore recommend opting for the latter solution.
FILTER
- All ducted vacuum cleaners are equipped with a nylon filter. The filter is washable, so dust can be easily removed.

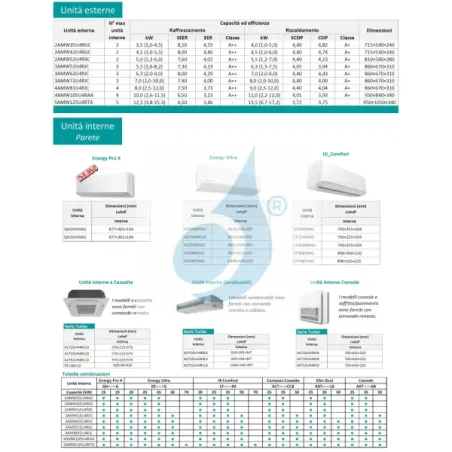

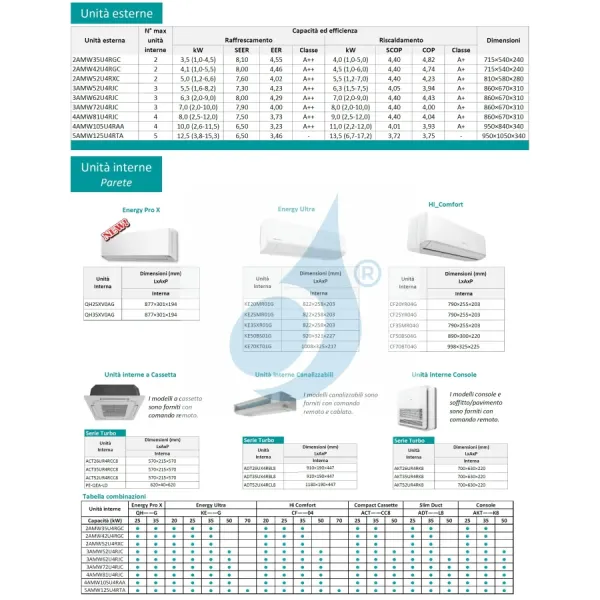

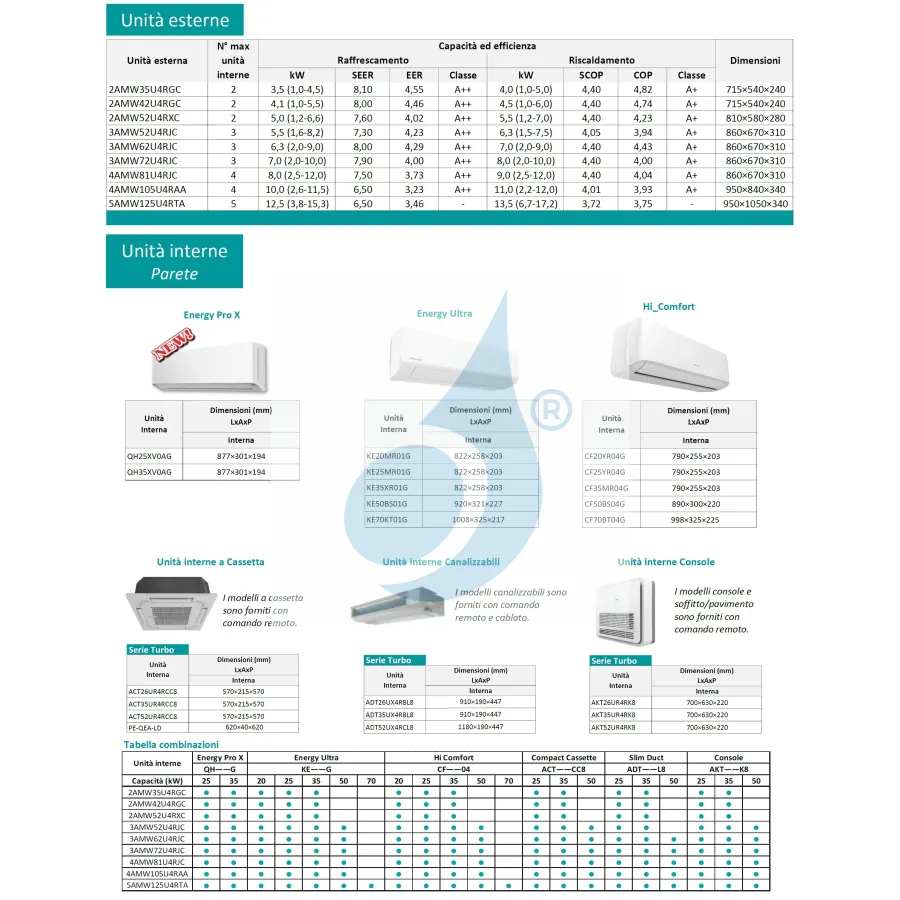

Schede Tecniche

Download Technical Data Sheet Multi Split (2024)
