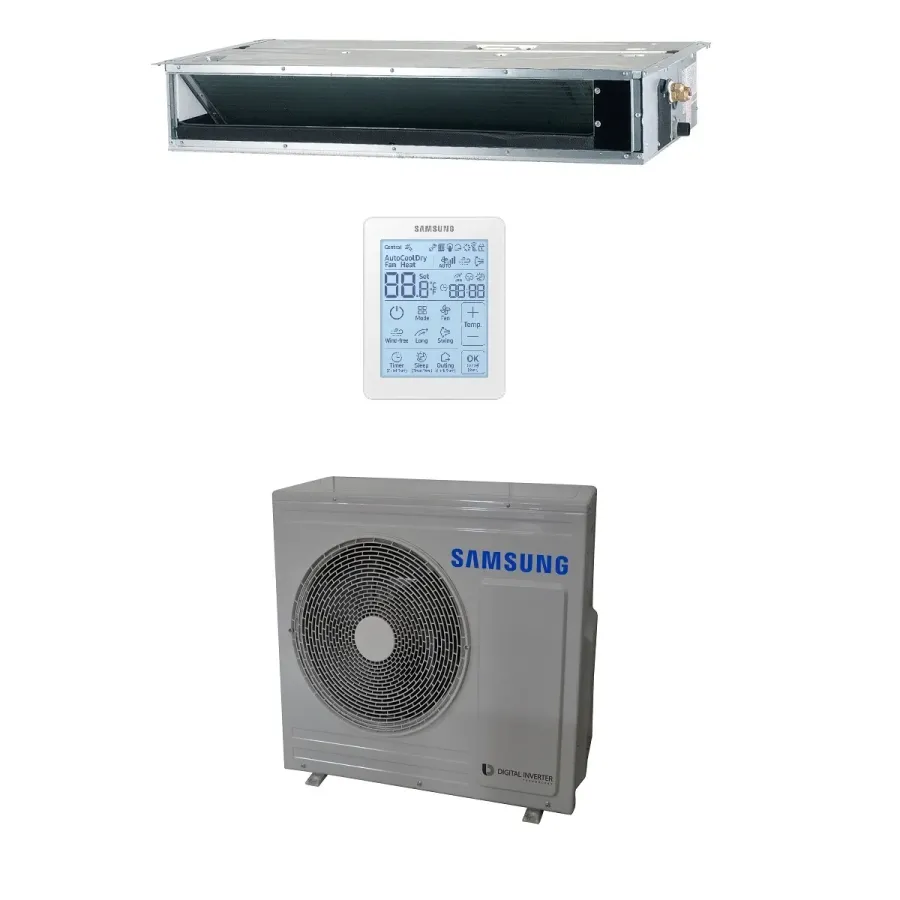

Samsung Mono Split Channel Low Prevalence 24000 Btu AC071BNLDKG/EU AC071RXADKG/EU Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Low Prevalence, WiFi Optional, 24000 BTU, Heat Pump with Low Energy Consumption, Inverter Technology Ideal for environments with one indoor unit up to 72 sq m. An excellent solution for comfort in all areas of your home or office.
Kit consisting of the following elements:
Indoor unit AC071BNLDKG/EU 24000 Btu Outdoor unit AC071RXADKG/EU 24000 Btu The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.Technical data sheets

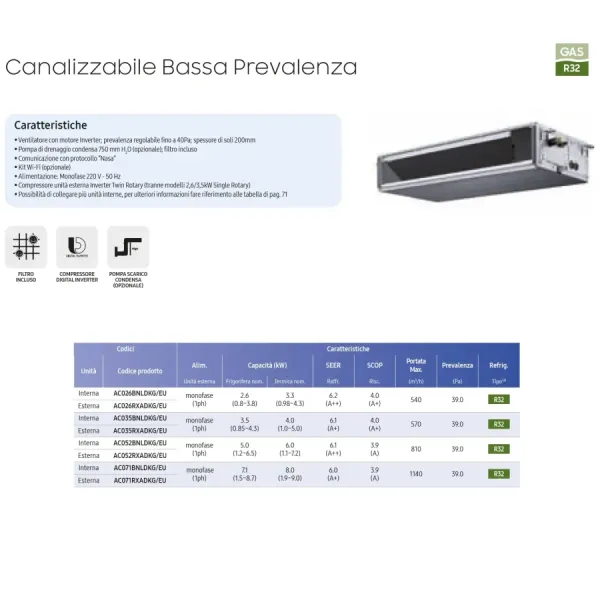

Download Technical Data Sheet Mono Split Ducted Low Head (IT)
Out of stock, product available soon
Samsung Mono Split Channel Low Prevalence 24000 Btu AC071BNLDKG/EU AC071RXADKG/EU Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Low Prevalence, WiFi Optional, 24000 BTU, Heat Pump with Low Energy Consumption, Inverter Technology
Kit consisting of the following elements:
Internal duct unit AC071BNLDKG/EU 24,000 BTU 7.1 kW
Ideal for rooms of 60 to 72 square meters with an average ceiling height of approximately 2.7 meters.
Length: 900 mm; Height: 260 mm; Depth: 480 mm.
Included accessories: MWR-SH11N Touch Wired Control.
Optional accessory: MIM-H04EN Wi-Fi interface.
External unit AC071RXADKG/EU 24,000 BTU 7.1 kW
Operation with refrigerant gas: R-32
Length: 880 mm; Height: 798 mm; Depth: 310 mm.
Indoor units with channels, low distribution
- Fan with inverter motor; adjustable prevalence up to 40Pa; thickness of only 200mm- Condensate drain pump 750 mm H2O (optional); filter included
- Communication using the "NASA" protocol
- Wi-Fi kit (optional)
- Power supply: Single-phase 220 V - 50 Hz
- Inverter twin rotary external compressor (except 2.6 kW and 3.5 kW single rotary models)
Technical data sheets
Download Technical Data Sheet Mono Split Ducted Low Head (IT)
- Rated power BTU
- 24000
BTU 24000 - series
- Low prevalence
- Rated power kW
- 7.0
7.1 - Type of facility
- channel
- Energy class cooling
- A+
- Energy class heating
- A
- Refrigerant gas
- R-32
- System type
- Mono Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- Manufacturer
- Samsung
- Installation site
- Mono Split
AC071BNLDKG+AC071RXADKG
