Samsung Mono Split Channel Low Prevalence 12000 Btu AC035BNLDKG/EU AC035RXADKG/EU Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Low Prevalence, WiFi Optional, 12000 BTU Heat Pump with Low Energy Consumption, Inverter Technology Ideal for environments with one indoor unit up to 36 m² An excellent solution for comfort in all areas of your home or office.

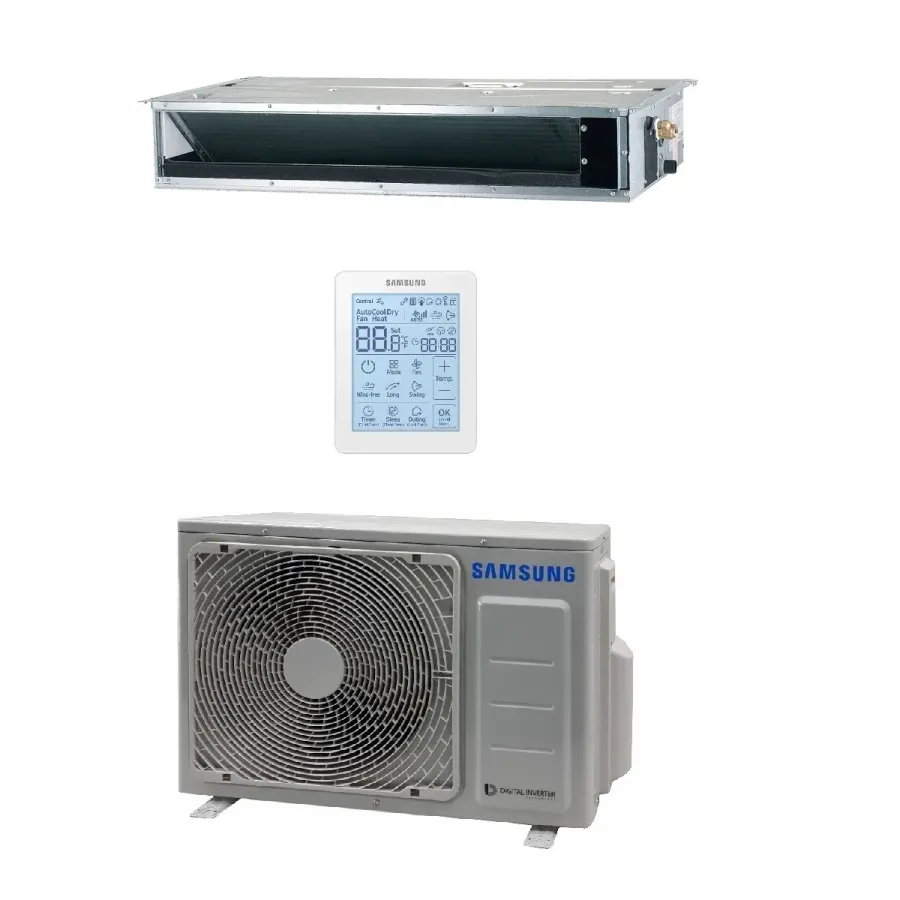

Kit consisting of the following elements:
Indoor unit AC035BNLDKG/EU 12000 Btu Outdoor unit AC035RXADKG/EU 12000 Btu The BTU ratings and square meter capacities are provided to simplify the technical data and improve readability. Please contact our customer service department for further information.Technical data sheets

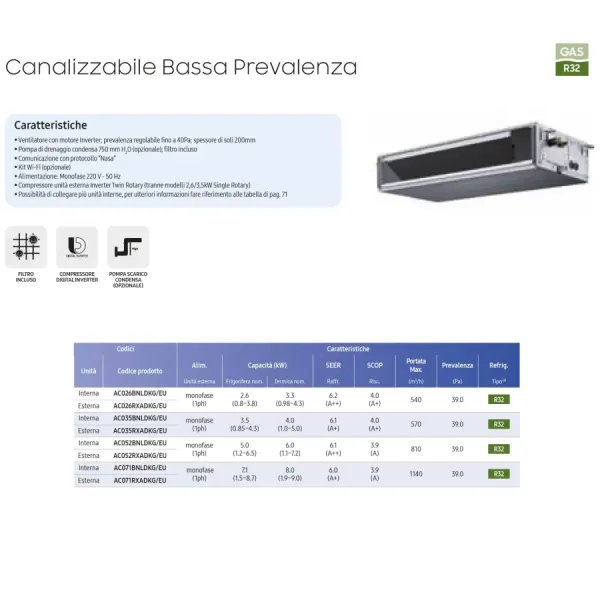

Download Technical Data Sheet Mono Split Ducted Low Head (IT)
Out of stock, product available soon
Samsung Mono Split Channel Low Prevalence 12000 Btu AC035BNLDKG/EU AC035RXADKG/EU Air Conditioners R-32
Samsung Mono Split Series Air Conditioners, Low Prevalence, WiFi Optional, 12000 BTU Heat Pump with Low Energy Consumption, Inverter Technology
Kit consisting of the following elements:
Internal duct unit AC035BNLDKG/EU 12,000 BTU 3.5 kW
Ideal for rooms of 27 to 36 square meters with an average ceiling height of approximately 2.7 meters.
Length: 700 mm; Height: 199 mm; Depth: 440 mm.
Included accessories: MWR-SH11N Touch Wired Control.
Optional accessory: MIM-H04EN Wi-Fi interface.
External unit AC035RXADKG/EU 12,000 BTU 3.5 kW
Operation with refrigerant gas: R-32
Length: 790 mm; Height: 548 mm; Depth: 285 mm.
Indoor units with channels, low distribution
- Fan with inverter motor; adjustable prevalence up to 40Pa; thickness of only 200mm- Condensate drain pump 750 mm H2O (optional); filter included
- Communication using the "NASA" protocol
- Wi-Fi kit (optional)
- Power supply: Single-phase 220 V - 50 Hz
- Inverter twin rotary external compressor (except 2.6 kW and 3.5 kW single rotary models)

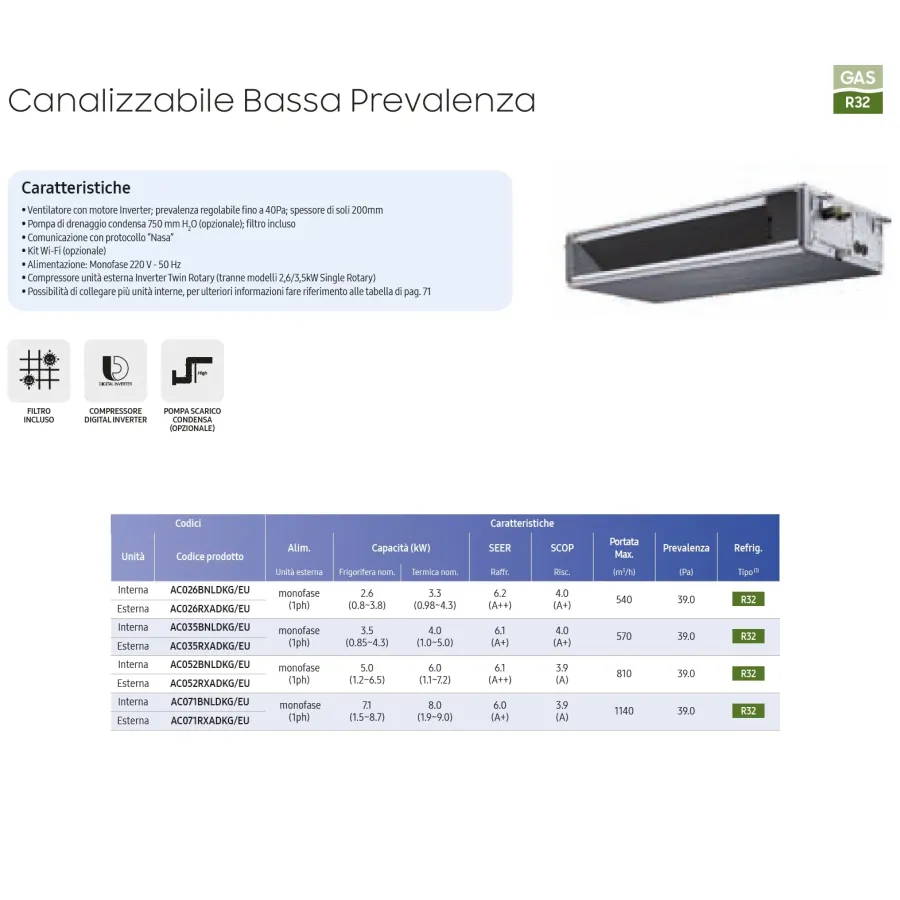

Technical data sheets
Download Technical Data Sheet Mono Split Ducted Low Head (IT)
- Rated power BTU
- 12000
BTU 12000 - series
- Low prevalence
- Rated power kW
- 3.5
- Type of facility
- channel
- Energy class cooling
- A+
- Energy class heating
- A+
- Refrigerant gas
- R-32
- System type
- Mono Split
- Wi-Fi connection
- WiFi Optional
- Declaration of commitment
- 1
- Manufacturer
- Samsung
- Installation site
- Mono Split
AC035BNLDKG+AC035RXADKG
