Samsung Mono Split Cassette 4 Vie Mini WindFree 12000 Btu AC035RNNDKG/EU AC035RXADKG/EU Air Conditioners White R-32

Samsung Mono Split Cassette 4 Vie Mini WindFree 12000 Btu AC035RNNDKG/EU AC035RXADKG/EU Air Conditioners White R-32

Samsung Mono Split Series 4 Vie Mini Air Conditioner, WindFree WiFi (Optional), 12000 BTU, Heat Pump with Low Energy Consumption, Inverter Technology

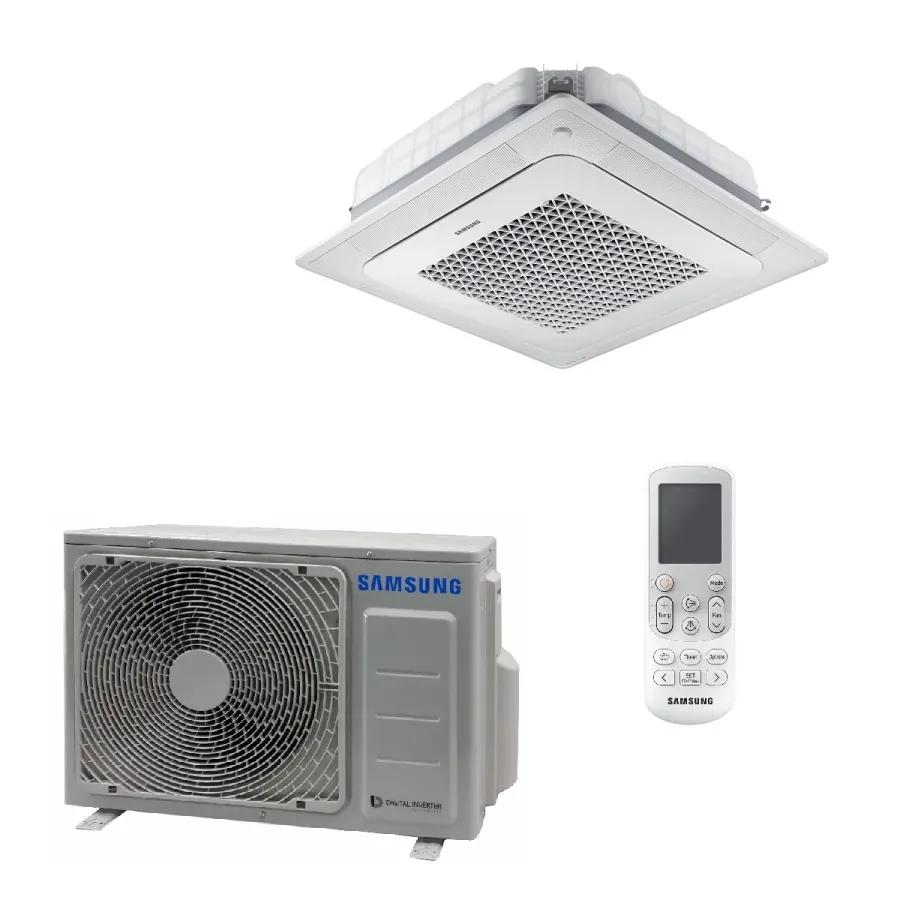

Kit consisting of the following elements:
Cassette indoor unit AC035RNNDKG/EU 12,000 BTU 3.5 kW
Ideal for rooms of 27 to 36 square meters with an average ceiling height of approximately 2.7 meters.
Length: 575 mm; Height: 250 mm; Depth: 575 mm.
Included accessories: White grill PC4SUFMAN and infrared remote control AR-EH03E.
Optional accessory: MIM-H04EN Wi-Fi interface.
External unit AC035RXADKG/EU 12,000 BTU 3.5 kW
Operation with refrigerant gas: R-32
Length: 790 mm; Height: 548 mm; Depth: 285 mm.

Indoor units cassette series 4-way Mini WindFree

- WindFree mode to prevent direct air jets thanks to 9,000 micro-holes; comfort guaranteed thanks to humidity sensor.
- New louvers with a depth of 66 mm, increased air throw distance; fan with inverter motor
- Airflow with individually adjustable guide vanes between 32° and 75°; turbo mode available
- Pre-cut for external air intake; panel with reduced dimensions 620 x 620 mm; built-in condensate drain pump (750 mm H2O);
- Communication using the NASA protocol; controllable via app on smartphone and tablet
- Single-phase power supply 220 V 50 Hz; Inverter twin rotary compressor for outdoor units (except 2.6/3.5 single-rotary models)

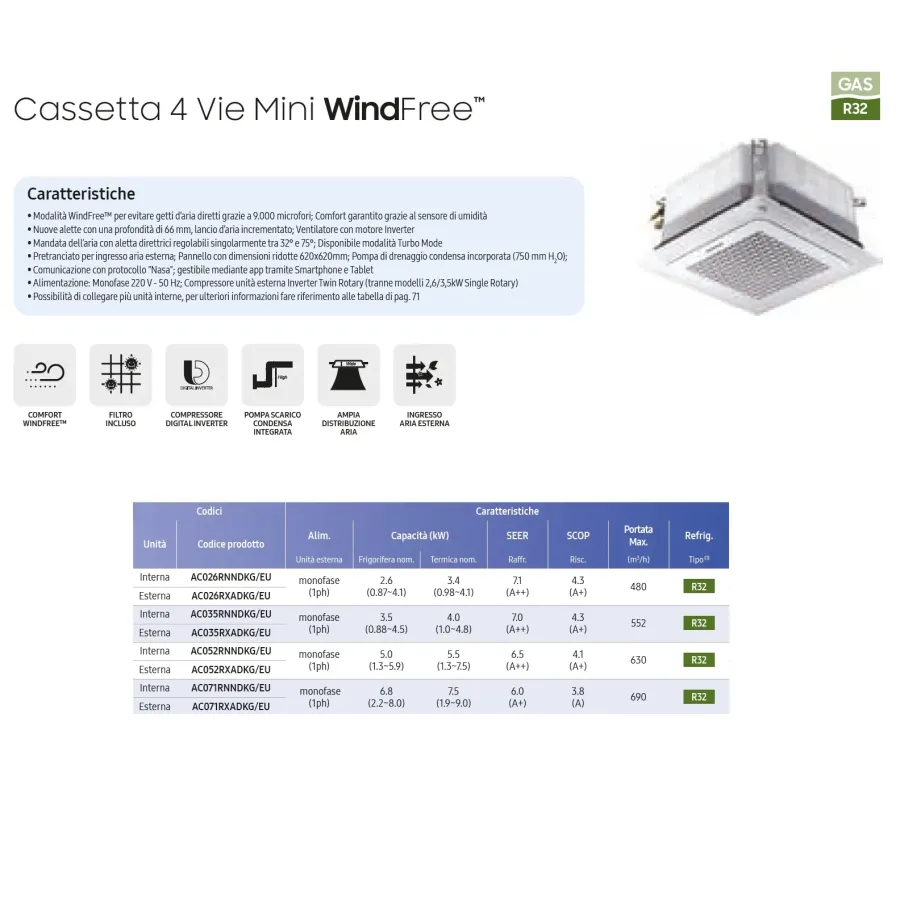

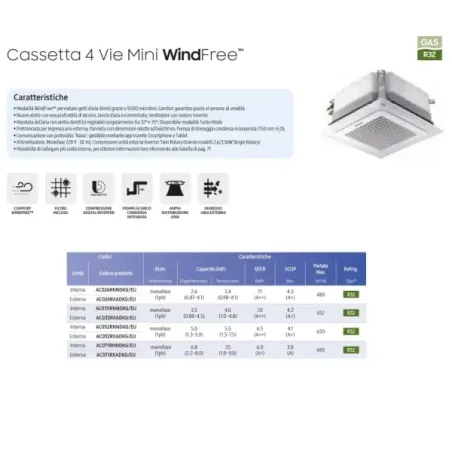

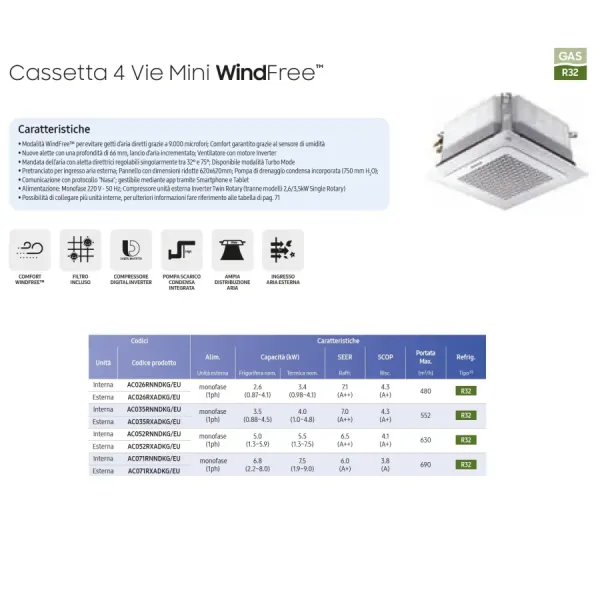

Technical data sheets

Download Technical Data Sheet Mono Split Cassette 4 Way Mini WindFree (IT)
